AQUALINK® RS ALL BUTTON (Jandy)

Shop Home » Jandy 2010 » Controls » Controls

AQUALINK® RS ALL BUTTON

This product is part of
Jandy 2010

Description
Features
Request a Quote
Send to a Friend

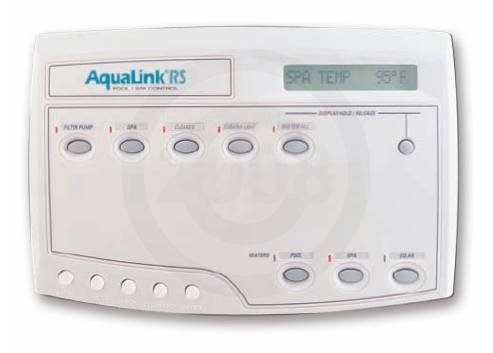

The AquaLink RS All Button allows automatic control of your swimming pool and spa. With custom labeled buttons of all equipment you will be able to easily understand and control your pool system. Your swimming pool and spa are your own private paradise and the Jandy AquaLink RS Control System puts that paradise at your fingertips.

Systems Include: Indoor Control Panel, up to 4 Power Center Bezels with Printed Circuit Boards, 2 Jandy Valve Actuators 24V (pool and spa combo models only), 1 Water Temperature Sensor, and 1 Air/Solar Temperature Sensor and all necessary 3HP relays required to operate system. Systems require one or more power centers, cable or wireless kit.

Pool and Spa Combination Control Systems: For use with Pool and Spa Combinations sharing one set of equipment (i.e. one filter pump, one heater, one filter, and two 3-port valves that switch between pool and spa).

Dual Equipment Pool and Spa Controls: For use with two separate sets of equipment (i.e. two filter pumps, two heaters and two filters for two separate bodies of water).

Pool Only/Spa Only Control Systems: For use with Pool or Spa Only (one body of water) utilizing one set of equipment (i.e. one filter pump, one heater, and one filter).

Built-in self diagnostics
Automatic equipment safety circuits and freeze protection
All necessary relays included
Lockout the complete system, individual devices and Spa-sides from the indoor control panel
Custom software and decal labeling of all functions
Indoor control of thermostats
Simple indoor programming and control of filter pump, heater, solar and up to 7 auxiliary circuits
Interfaces with chlorine generators for convenient indoor control and monitoring of pool sanitation needs.
Indoor display of water and air temperatures

Product Information

Name:AQUALINK® RS ALL BUTTON

Manufacturer:Jandy

Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:	(540) 370-0665
Fax:	(540) 370-0436

Contact Information

First Name:Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?	Last Name:Confirm Email:Country: Address 2:Region: Purchase Time Frame:
Comments:

*Required fields.

Product Information

Name:AQUALINK® RS ALL BUTTON

Manufacturer:Jandy

Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Pool Only/Spa Only Control Systems

Pool and Spa Combination Control Systems (AQUALINK® RS ALL BUTTON)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: 7961RLY

MODEL: AquaLink RS32 OneTouch Sub Assembly - OneTouch Pool and Spa Combination (White) - System Includes: Control Panel, 4 Power Center PCB’s w/bezels, 2 JVA 24V, 2 Temperature Sensors and 16 additional 3HP relays. Controls Filter Pump, Spa switch-over, Pool and Spa Heater, Solar and up to 31 auxiliary circuits. Requires: 4 Power Centers


Send to a Friend

Part#: 7960RLY

MODEL: AquaLink RS24 OneTouch Sub Assembly - OneTouch Pool and Spa Combination (White) - System Includes: Control Panel, 3 Power Center PCB’s w/bezels, 2 JVA 24V, 2 Temperature Sensors and 12 additional 3HP relays. Controls Filter Pump, Spa switch-over, Pool and Spa Heater, Solar and up to 23 auxiliary circuits. Requires: 3 Power Centers


Send to a Friend

Part#: 7959RLY

MODEL: AquaLink RS16 Sub Assembly - OneTouch Pool and Spa Combination (White) - System Includes: Control Panel, 2 Power Center PCB’s w/bezels, 2 JVA 24V, 2 Temperature Sensors and 8 additional 3HP relays. Controls Filter Pump, Spa switch-over, Pool and Spa Heater, Solar and up to 15 auxiliary circuits. Requires: 2 Power Centers


Send to a Friend

Part#: 7958RLY

MODEL: AquaLink RS12 Sub Assembly - OneTouch Pool and Spa Combination (White) - System Includes: Control Panel, 2 Power Center PCB’s w/bezels, 2 JVA 24V, 2 Temperature Sensors and 4 additional 3HP relays. Controls Filter Pump, Spa switch-over, Pool and Spa Heater, Solar and up to 11 auxiliary circuits. Requires: 2 Power Centers


Send to a Friend

Part#: 6687RLY

MODEL: AquaLink RS8 Sub Assemblies - All Button Pool and Spa Combination


Send to a Friend

Part#: 7957RLY

MODEL: AquaLink RS8 Sub Assemblies - OneTouch Pool and Spa Combination (White)


Send to a Friend

Part#: 8225RLY

MODEL: AquaLink RS8 Sub Assemblies - Wireless OneTouch Pool and Spa Combination


Send to a Friend

Part#: PDA-PS8

MODEL: AquaLink RS8 Sub Assemblies - Wireless PDA Pool and Spa Combination - Systems Include: Control Panel, 1 Power Center PCB w/bezel, 2 JVA 24V, 2 Temperature Sensors and includes 4 additional 3HP relays. Controls Filter Pump, Spa switch-over, Pool and Spa Heater, Solar and up to 7 auxiliary circuits. Requires: 1 Power Center


Send to a Friend

Part#: 6686RLY

MODEL: AquaLink RS6 Sub Assemblies - All Button Pool and Spa Combination


Send to a Friend

Part#: 7956RLY

MODEL: AquaLink RS6 Sub Assemblies - OneTouch Pool and Spa Combination (White)


Send to a Friend

Part#: PDA-PS6

MODEL: AquaLink RS6 Sub Assemblies - Wireless PDA Pool and Spa Combination - Systems Include: Control Panel, 1 Power Center PCB w/bezel, 2 JVA 24V, 2 Temperature Sensors and includes 2 additional 3HP relays. Controls Filter Pump, Spa switch-over, Pool and Spa Heater, Solar and up to 5 auxiliary circuits. Requires: 1 Power Center


Send to a Friend

Part#: 6685

MODEL: AquaLink RS4 Sub Assemblies - All Button Pool and Spa Combination


Send to a Friend

Part#: 7955

MODEL: AquaLink RS4 Sub Assemblies - OneTouch Pool and Spa Combination (White)


Send to a Friend

Part#: PDA-PS4

MODEL: AquaLink RS4 Sub Assemblies - Wireless PDA Pool and Spa Combination - Systems Include: Control Panel, 1 Power Center PCB w/bezel, 2 JVA 24V, 2 Temperature Sensors. Controls Filter Pump, Spa switch-over, Pool and Spa Heater, Solar and up to 3 auxiliary circuits. Requires: 1 Power Center

Dual Equipment Pool and Spa Controls (AQUALINK® RS ALL BUTTON)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: 7973RLY

MODEL: AquaLink RS 2/30 OneTouch Sub Assembly - OneTouch Dual Equipment (White) - System Includes: Control Panel, 4 Power Center PCB’s w/bezels, 3 Temperature Sensors, Dual Equipment Heater Interface Board (part# 6586) and 16 additional 3HP relays. Controls Pool Pump, Spa Pump, Pool Heater, Spa Heater, Solar and up to 30 auxiliary circuits. Requires: 4 Power Centers


Send to a Friend

Part#: 7972RLY

MODEL: AquaLink RS2/22 OneTouch Sub Assembly - OneTouch Dual Equipment (White) - System Includes: Control Panel, 3 Power Center PCB’s w/bezels, 3 Temperature Sensors, Dual Equipment Heater Interface Board (part# 6586) and 12 additional 3HP relays. Controls Pool Pump, Spa Pump, Pool Heater, Spa Heater, Solar and up to 22 auxiliary circuits. Requires: 3 Power Centers


Send to a Friend

Part#: 7971RLY

MODEL: AquaLink RS2/14 Sub Assembly - OneTouch Dual Equipment (White) - System Includes: Control Panel, 2 Power Center PCB’s w/bezels, 3 Temperature Sensors, Dual Equipment Heater Interface Board (part# 6586) and 8 additional 3HP relays. Controls Pool Pump, Spa Pump, Pool Heater, Spa Heater, Solar and up to 14 auxiliary circuits. Requires: 2 Power Centers


Send to a Friend

Part#: 7970RLY

MODEL: AquaLink RS2/10 Sub Assembly - OneTouch Dual Equipment (White) - System Includes: Control Panel, 2 Power Center PCB’s w/bezels, 3 Temperature Sensors, Dual Equipment Heater Interface Board (part# 6586) and 4 additional 3HP relays. Controls Pool Pump, Spa Pump, Pool Heater, Spa Heater, Solar and up to 10 auxiliary circuits. Requires: 2 Power Centers


Send to a Friend

Part#: 6691RLY

MODEL: AquaLink RS2/6 Sub Assemblies - All Button Dual Equipment


Send to a Friend

Part#: 7969RLY

MODEL: AquaLink RS2/6 Sub Assemblies - OneTouch Dual Equipment (White) - Systems Include: Control Panel, 1 Power Center PCB w/bezel, 3 Temperature Sensors, Dual Equipment Heater Interface Board (part# 6586) and 4 additional 3HP relays. Controls Pool Pump, Spa Pump, Pool Heater, Spa Heater, Solar and up to 6 auxiliary circuits. Requires: 1 Power Center

Pool Only/Spa Only Control Systems (AQUALINK® RS ALL BUTTON)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: 7966RLY

MODEL: AquaLink RS16 Sub Assemblies - OneTouch Pool Only/Spa Only (White) - System Includes: Control Panel, 2 Power Center PCB’s w/bezels, 2 Temperature Sensors and 8 additional 3HP relays. Controls Filter Pump, Pool or Spa Heater, Solar and up to 15 auxiliary circuits. Requires: 2 Power Centers


Send to a Friend

Part#: 6690RLY

MODEL: AquaLink RS8 Sub Assemblies - All Button Pool Only/Spa Only


Send to a Friend

Part#: 7964RLY

MODEL: AquaLink RS8 Sub Assemblies - OneTouch Pool Only/Spa Only (White)


Send to a Friend

Part#: PDA-P8

MODEL: AquaLink RS8 Sub Assemblies - Wireless PDA Pool Only/Spa Only - Systems Include: Control Panel,1 Power Center PCB w/bezel, 2 Temperature Sensors and 4 additional 3HP relays. Controls Filter Pump, Pool or Spa Heater, Solar and up to 7 auxiliary circuits. Requires: 1 Power Center


Send to a Friend

Part#: 6689RLY

MODEL: AquaLink RS6 Sub Assembly - All Button Pool Only/Spa Only - System Includes: Control Panel, 1 Power Center PCB w/bezel, 2 Temperature Sensors and 2 additional 3HP relays. Controls Filter Pump, Pool or Spa Heater, Solar and up to 5 auxiliary circuits Requires: 1 Power Center


Send to a Friend

Part#: 6688

MODEL: AquaLink RS4 Sub Assemblies - All Button Pool Only/Spa Only


Send to a Friend

Part#: 7962

MODEL: AquaLink RS4 Sub Assemblies - One Touch Pool Only/Spa Only (White)


Send to a Friend

Part#: PDA-P4

MODEL: AquaLink RS4 Sub Assemblies - Wireless PDA Pool Only/Spa Only - Systems Include: Control Panel,1 Power Center PCB w/bezel and 2 Temperature Sensors. Controls Filter Pump, Pool or Spa Heater, Solar and up to 3 auxiliary circuits. Requires: 1 Power Center


Send to a Friend

Part#: PLINK

MODEL: Pool Link Dual Timer Module - Pool Link Module - Module Includes: Pool Link bracket and PCB, Primary 24 hour Time Clock, Secondary Timer Switches, Service switches for both timers, Freeze Protection Sensor. Requires: 1 Power Center, can be with or without Water Purification.
